P34 Vogt 1.5" tube ice maker being reconditioned. New ice maker evaporator tubes installed. Machine cleaned and painted.

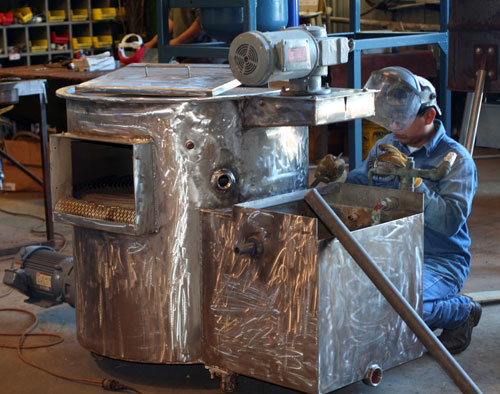

Cutter assembly for P34 ice maker. Cutter is taken apart, reconditioned, cleaned and test operated for 24 hours.

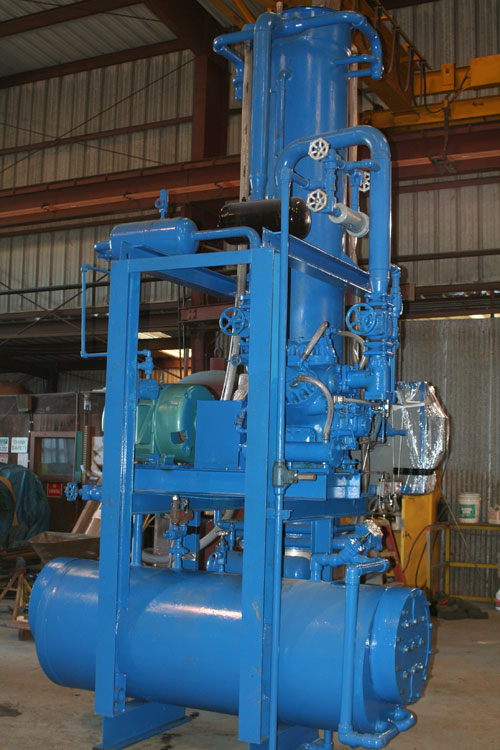

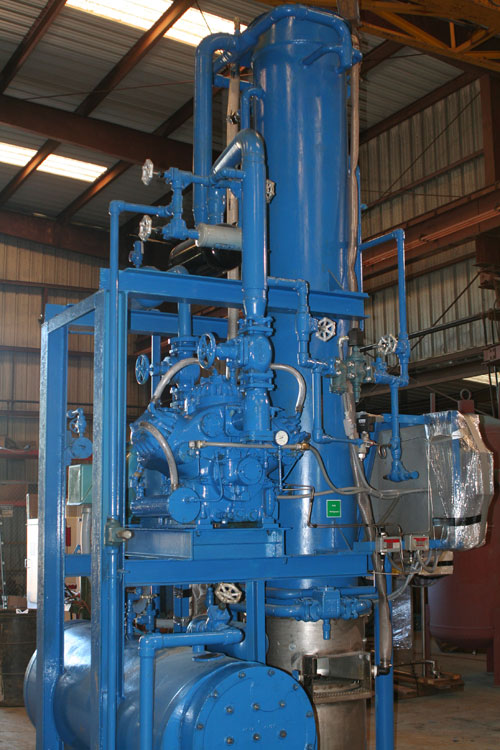

Completely rebuilt Vogt P24A package tubular ice maker. 20 tons/24 hour production.
Rebuilt Vogt P24A Package 20 ton ice maker.

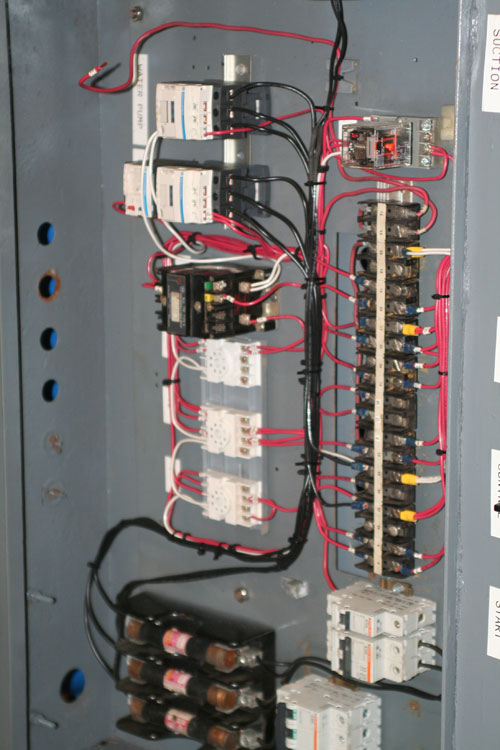

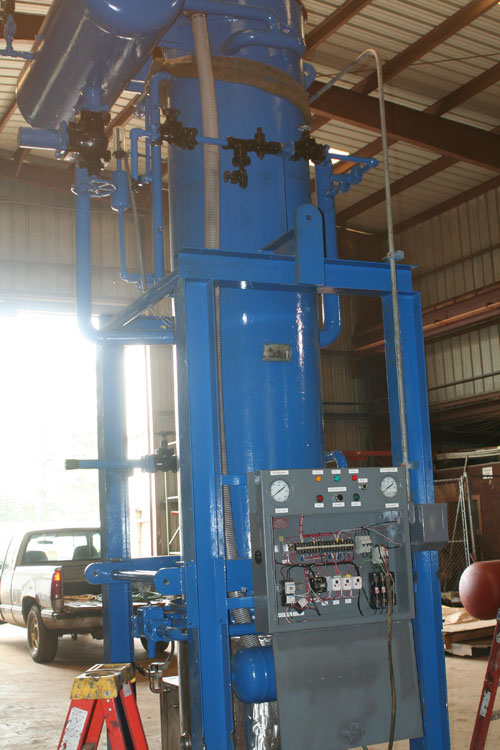

Inside view of Vogt ice maker panel after rebuilding by C&R.;
Rebuilt Vogt P34AL Ice Maker.

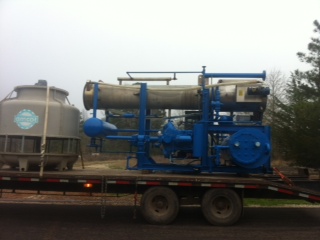

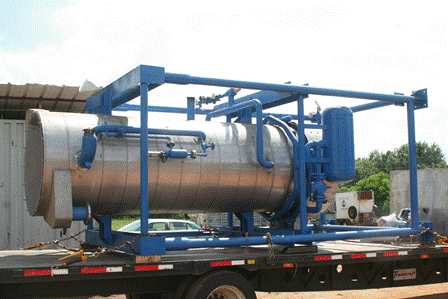

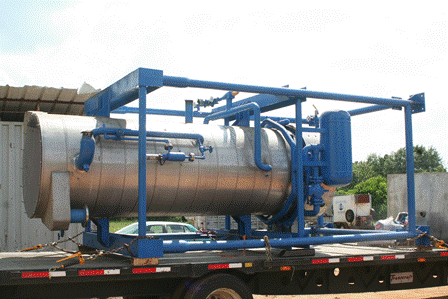

Rebuilt 20 ton tube ice maker for shipment

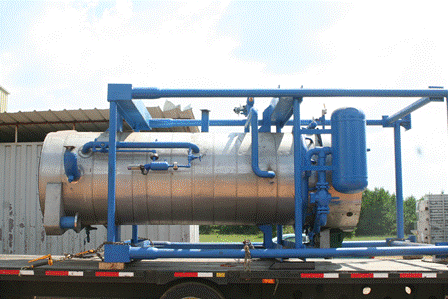

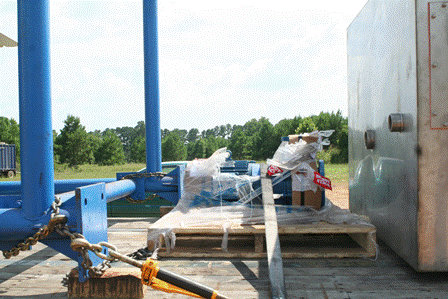

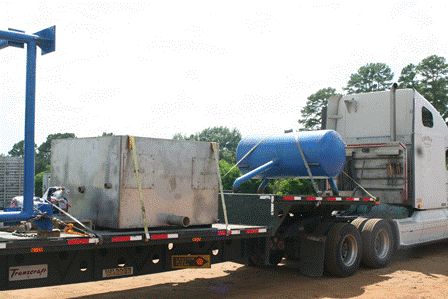

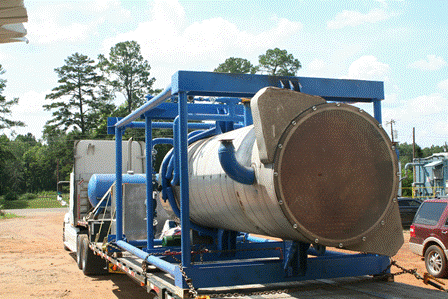

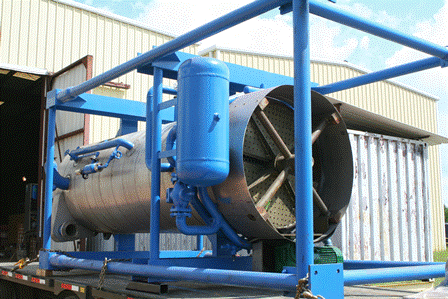

Rebuilt 120 ton ice maker
Rebuilt 120 ton ice maker
Rebuilt 120 ton ice maker
Rebuilt 120 ton ice maker
Rebuilt 120 ton ice maker
Rebuilt 120 ton ice maker
Rebuilt 120 ton ice maker
Rebuilt 120 ton ice maker
Vogt, C&R, Frick and Morris
C and R offers rebuilt tubular ice makers as well as new tubular ice makers. Rebuilt tubular ice makers go thru an extensive rebuilding process as follows.
For package ice makers-
- Ice maker evaporator tubes are checked and replaced as necessary
- Ice maker condenser tubes are reconditioned and replaced as necessary
- Compressor and compressor motor reconditioned
- All refrigeration valves are reconditioned and replaced as required.
- Control panel is reconditioned and parts replaced as required.
- All ice maker piping is carefully checked
- Ice maker cutter is disassembled and reconditioned
- Water pump and cutter motor reconditioned.
- Ice maker is reassembled and cleaned and painted.
- Ice maker assembly is pressure tested for 72 hours
- Ice maker assembly has vacuum test for 48 hours.
Rebuilt ice makers are available in 5 ton, 10 ton, 20 ton, 40 ton and 75ton/24hour capacities.
